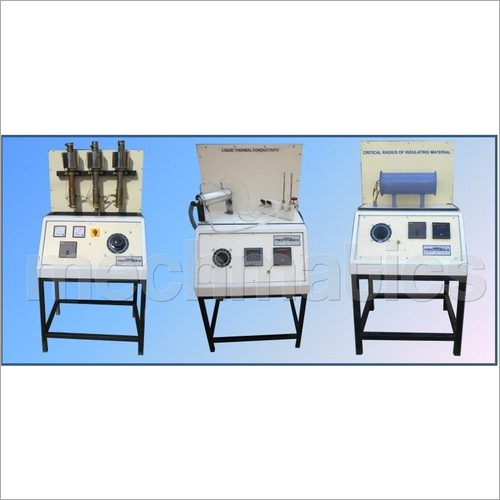

        Conduction Heat Transfer

        Conduction Heat Transfer
        Conduction Heat Transfer
        Product Code : HMT.001
        Product Description

        Conduction Heat Transfer

        Apparatus

        Specifications

        Control Panel

        Heater

        Thermocouples

        Thermal Conductivity of Metal Rod

        Test Bar: 300 mm long / 25 mm Dia./ Brass
        Shell Dia.: 175 mm

        Digital Voltmeter (0-230V)

        Digital Ammeter (0-2 Amps)

        (Optional Watt meter: 400W)

        Toggle ON/OFF

        400 Watt

        Band Type

        Dimmer Controller

        K-type (Cr.Al)

        8 Nos.

        Multi-Channel Temp. Indicator

        Thermal Conductivity of Insulating Powder

        Sphere: ID: 120mm

        OD 200 mm

        MOC: Copper

        Digital Voltmeter (0-230V)

        Digital Ammeter (0-2 Amps)

        (Optional Watt meter: 400W)

        Toggle ON/OFF

        400 Watt

        Spherical Type

        Dimmer Controller

        K-type (Cr.Al)

        8 Nos.

        Multi-Channel Temp. Indicator

        Thermal Conductivity of Liquid /Gases

        Dia: 39.2 mm

        Fluid Film Thickness: 0.4 mm

        Length: 300 mm

        Digital Voltmeter (0-230V)

        Digital Ammeter (0-2 Amps)

        (Optional Watt meter: 400W)

        Toggle ON/OFF

        400 Watt

        Cartridge Type

        Dimmer Controller

        K-type (Cr.Al)

        PT-100 Type -2

        Multi-Channel Temp. Indicator

        Heat pipe Demonstrator

        Heat Pipe:F 38 mm Dia 380 mm Long

        Other : SS and Cu Pipe

        Water Jacket

        Digital Voltmeter (0-230V)

        Digital Ammeter (0-2 Amps)

        (Optional Watt meter: 400W)

        Toggle ON/OFF

        400 Watt

        Band Type

        Dimmer Controller

        K-type (Cr.Al)

        6 Nos.

        Multi-Channel Temp. Indicator

        Composite Wall Apparatus

        Wall: MS, Bakelite and Wood

        Dia: 250 mm

        Digital Voltmeter (0-230V)

        Digital Ammeter (0-2 Amps)

        (Optional Watt meter: 400W)

        Toggle ON/OFF

        400 Watt

        Plate Type

        Dimmer Controller

        K-type (Cr.Al)

        8 Nos.

        Multi-Channel Temp. Indicator

        Critical Radius of Insulating Powder

        Radius: 25 mm

        Insulating Material: Asbestos

        Digital Voltmeter (0-230V)

        Digital Ammeter (0-2 Amps)

        (Optional Watt meter: 400W)

        Toggle ON/OFF

        400 Watt

        Cartridge Type

        Dimmer Controller

        K-type (Cr.Al)

        8 Nos.

        Multi-Channel Temp. Indicato
