Electrical Fluid Analogy Flownet

Electrical Fluid Analogy Flownet
Electrical Fluid Analogy Flownet
Product Code : FPE005
Product Description

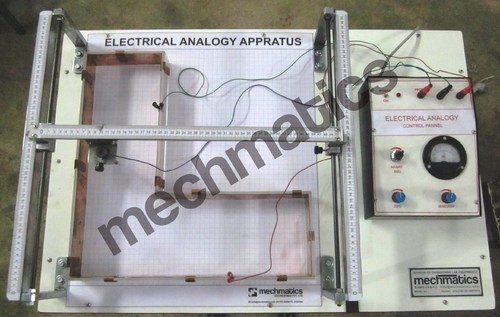

Electrical Fluid Analogy Flownet

Electrical Analogy Method is based on the fact that the flow of fluids and the flow of electricity through a conductor are analogues. These two systems are similar in the following respects

  • The electric potential is analogues to the velocity potential.
  • The electric current is analogues to the velocity of flow.
  • The homogenous conductor is analogues to the homogenous fluid. The experimental set up consists of a model of one flow geometry for which the flow net is to be drawn.

Features of Setup:

  • x-Y Probe Holder
  • Various Shapes Possible in range 450 mm x 450 mm
  • Different sizes of copper conducting strips
  • Graphical Background
  • Perspex Models
  • Electronic system is provided with a signal generator and potentiometer circuit probe.
