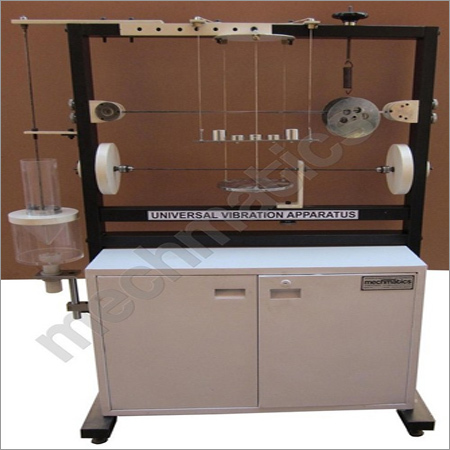

Universal Vibration Apparatus

Universal Vibration Apparatus
Universal Vibration Apparatus
Product Code : DOM001
Product Description

UNIVERSAL VIBRATION APPARATUS



 EXPERIMENTAL SCOPE

  • Simple pendulum
  • Compound pendulum
  • Bifilar Suspension
  • Trifler Suspension
  • Mass-spring systems
  • Equivalent Spring Stiffness

Available also as

Pendulum Module

  • Torsional oscillations of a single rotor
  • Torsional oscillations of a single rotor with viscous damping
  • Torsional oscillations of a two rotors system

Available also as

Torsional Vibrations Module

  • Transverse vibration of a beam with one or more bodies attached
  • Free vibration of a Spring-mass system
  • Forced damped vibration of Spring-mass system
  • Dunkerley's Theorem Verification

Available also as

Transverse Vibrations Module





Specifications

  • Net Dimensions: 1400 x 600 x 1600 mm
  • A heavy and sturdy MS frame with a useful cupboard to store all accessories.
  • A Control panel with Dimmer and Digital RPM Indicator
  • Arrangement for plotting amplitudes of vibrations by a strip chart recorder.
  • Arrangement for changing the damping positions.
  • No. of long steel Beam = 3 nos.
  • No. of Shaft = 3 nos.
  • No. of Spring of Varying Stiffness = 2 Nos
  • Tools Included: Allen key set, Stopwatch and measuring tape
  • A Comprehensive and a detailed technical Manual
